Electrical portable type
Air Filtration

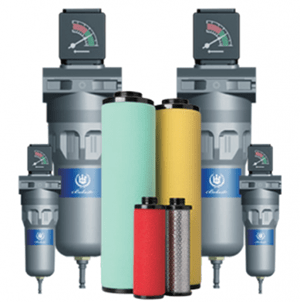

Bolaite High Efficiency Filters
Compressed air contains oil, solid particles and water vapors. Together, they form an abrasive, often acidic, oily sludge. Without air treatment, this murky mix will enter the compressed air system, corroding pipe work, damaging pneumatic tools and potentially compromising final products. To protect the air system, BLT offers a wide selection of filtration solutions and application knowledge
On the Whole
Compact sizeHigh efficiencyDesigned for 24/7 duty cycleMinimum maintenance required
Look Closer
Imported multi-layer glass fiber filterLow pressure dropOutstanding filtration effectStable performance
Request A Quote
Benefits & Key Features
Technical Specifications
Benefits & Key Features
High efficiency
- Imported multi-layer glass fiber filter
- High efficiency decontamination ability
- Low pressure loss
- Outstanding filtration effect
Long service life
- Stable performance and long service life
- Both inner and outer filter elements are treated with anti-corrosion treatment
Premium reliability
- Compact, lightweight, easy to install and maintain
- Comprehensive air quality assures system reliability
- BLE series filter equipped with differential pressure indicator and zero-loss automatic drain valve
Technical Specifications
| BLD matched | BLR matched | Capacity (m3/min) | Connections | Dimensions (mm) | Free space for replacement |
|---|---|---|---|---|---|
| BLE9 | BLF9 | 0.9 | 3/8″ | 417x106x96 | 228 |
| BLE18 | BLF18 | 1.8 | 1/2″ | 417x106x96 | 228 |
| BLE25 | BLF25 | 2.5 | 1/2″ | 417x106x96 | 283 |
| BLE35 | BLF35 | 3.5 | 1″ | 436x148x121 | 303 |
| BLE60 | BLF60 | 6.0 | 1″ | 436x148x121 | 343 |
| BLE105 | BLF105 | 10.5 | 1 1/2″ | 630x180x152 | 449 |
| BLE140 | BLF140 | 14.0 | 1 1/2″ | 630x180x152 | 532 |
| BLE175 | BLF175 | 17.5 | 1 1/2″ | 630x180x152 | 532 |
| BLE260 | BLF260 | 26.0 | 2″ | 720x212x190 | 618 |
| BLE380 | BLF380 | 38.0 | 3″ | 820x240x230 | 720 |
| BLE490 | BLF490 | 49.0 | 3″ | 990x240x230 | 890 |
Note:
Maximum inlet pressure: 16bar
