Diesel portable type
Serve anywhere you require
Atlas Copco airend
Built on proven Atlas Copco group technology and supported by original Bolaite components.
High Energy Efficiency
Permanent magnet variable speed control helps reduce wasted energy under changing air demand.
Need a compressor match?
Share your air demand, pressure and site conditions. Our engineers will recommend the right model.

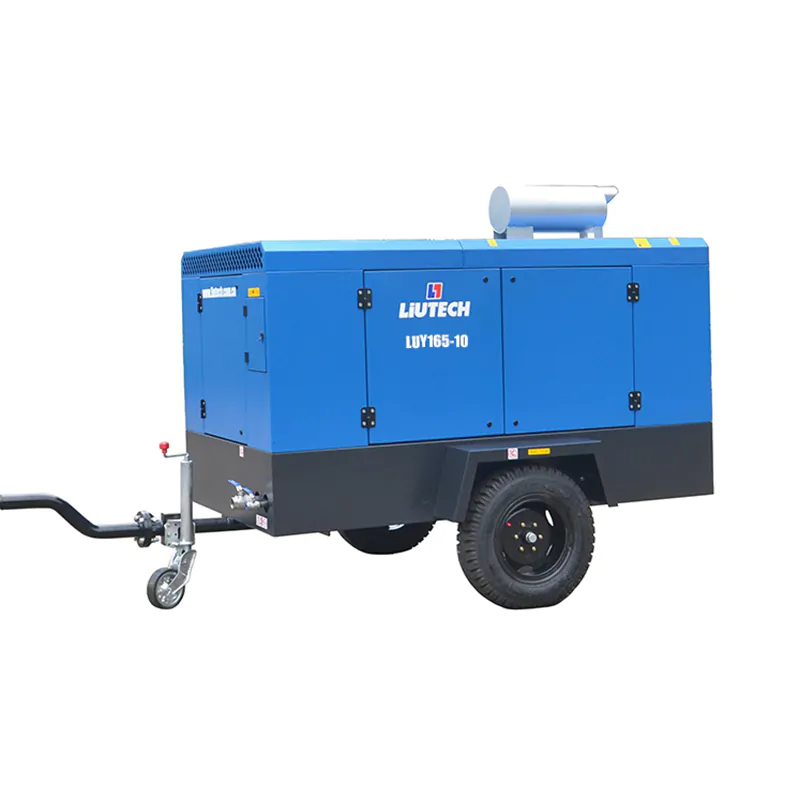

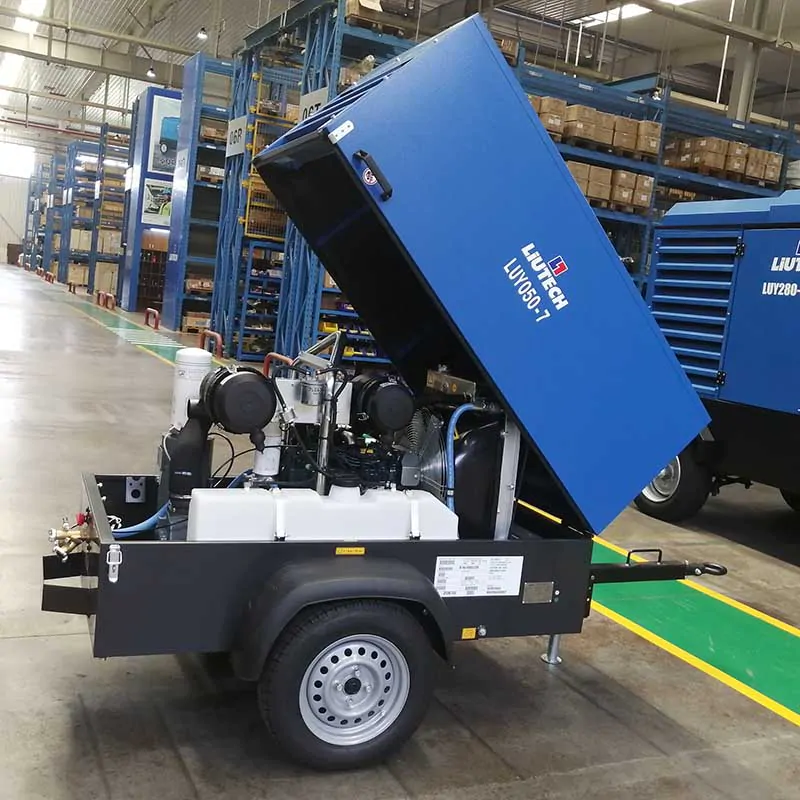

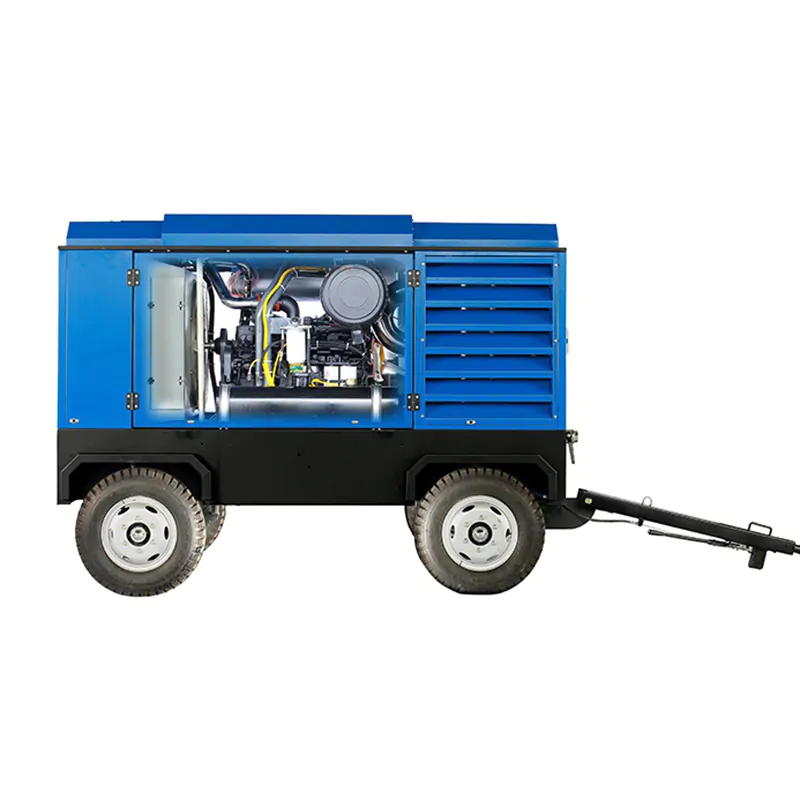

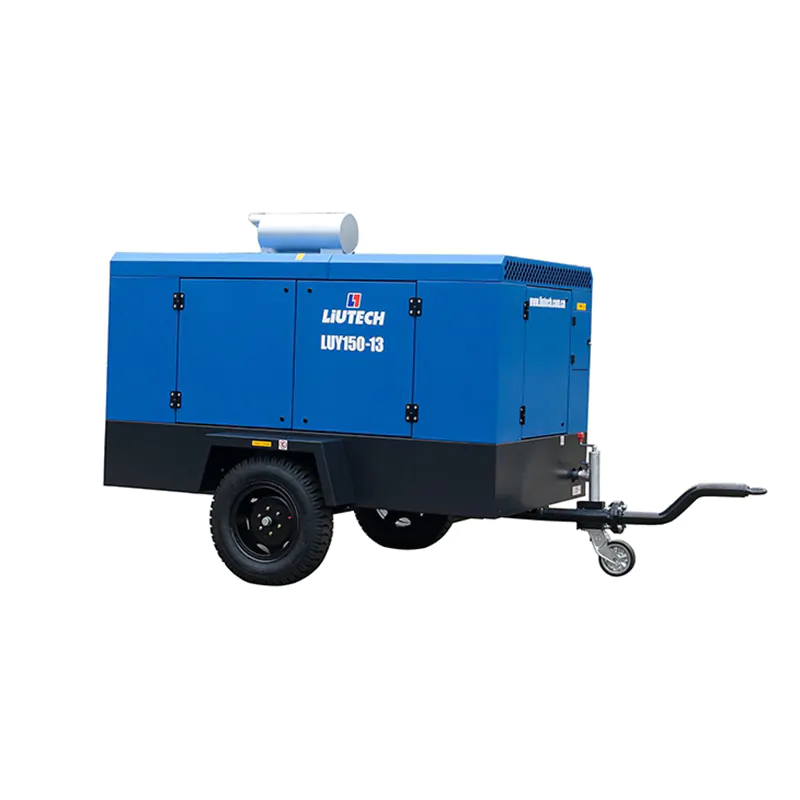

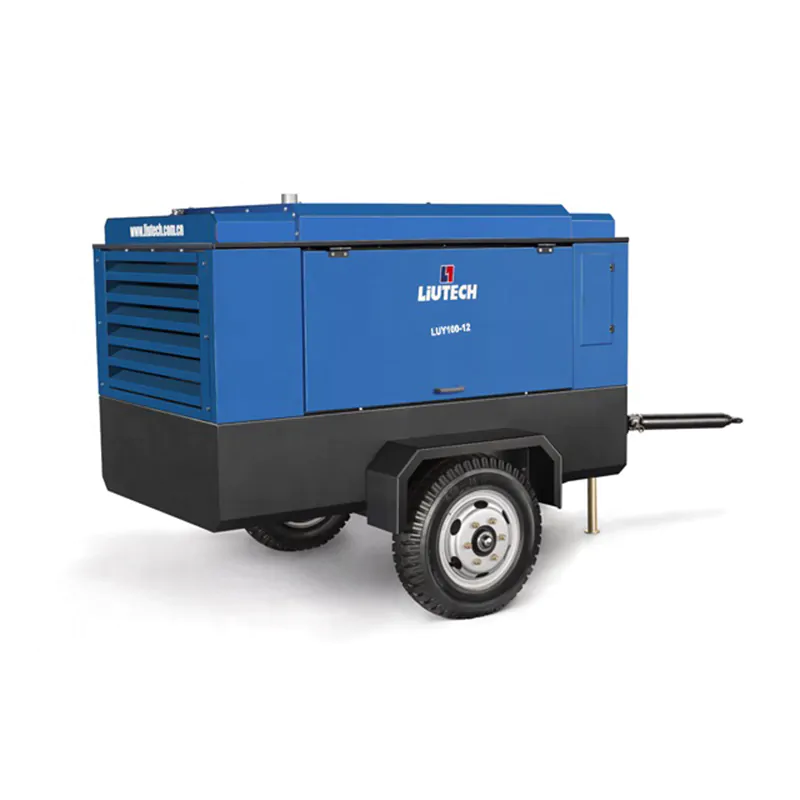

Just like the stationary screw air compressors, diesel portable air compressors have the same working principles. Instead of using motors, they are equipped with diesel engine to drive the compressor. Thus, the compressors can be towed to the working field and work without electrical supply. Liutech diesel portable air compressors have a wide range of supplies that fit your requirements.
Features
Liutech air compressor could bring you:
- Long-life consumables intervals
- Low oil consumption
- Atlas Copco’s airend(rotors)
- Atlas Copco same performance
- Main component from Atlas Copco for reliable performance
Common Applications Cover Diverse Working Sites
General Construction
RECOMMENDED MODELSLUY050-7, LUY120-7, LUY085-14, LUY100-10, LUY130D-7Nominal Working Pressure: 7~14barFree Air Delivery: 5~13m3/minMax Ambient Air Temperature: 50 ℃
Ground Engineering Drilling
RECOMMENDED MODELS:Nominal Working Pressure: 7 to 17 barFree Air Delivery: 12 to 28 m3/minMax Ambient Air Temperature: 50℃LUY120-7,LUY135D-13,LUY130D-7,LUY130D-10,LUY120-14,LUY150-15,LUY160-17,LUY238D-14,LUY280D-8.5
Utility, Abrasive Blasting
RECOMMENDED MODELS:LUY100-10, LUY100-12, LUY120-7, LUY200-10, LUY220-8Nominal Working Pressure: 7 to 10 barFree Air Delivery: 10 to 22 m3/minMax Ambient Air Temperature: 50℃
Blast Hole Drilling
RECOMMENDED MODELS:LUY120-14, LUY160-17, LUY180-19, LUY220D-21, LUY250D-21, LUY290D-21Nominal Working Pressure: 14 to 21 barFree Air Delivery: 12 to 29 m3/minMax Ambient Air Temperature: 50℃
High Pressure Drilling
RECOMMENDED MODELS:LUY180-19, LUY310-25, LUY390-25, LUY390-30, LUY340-34Nominal Working Pressure: 19 to 34 barFree Air Delivery: 18 to 39 m3/minMax Ambient Air Temperature: 50℃
Optional Configuration
- Air pre-filter for heavy duty condition
- Cold start (for minimum temp. to -20℃)
- Box mount
- GPS & remote control
- After cooler*
*suitable for LUY100, LUY200, LUY300
On the Whole
Optimal SizeFull Shift Fuel AutonomySimple ServiceTough Performer
Look Closer
Energy EfficiencyLow noise levelAtlas Copco designed controllerChina III non-road machinery exhaust pollutants standard
Request A Quote
High quality and low fuel consumption with Atlas Copco

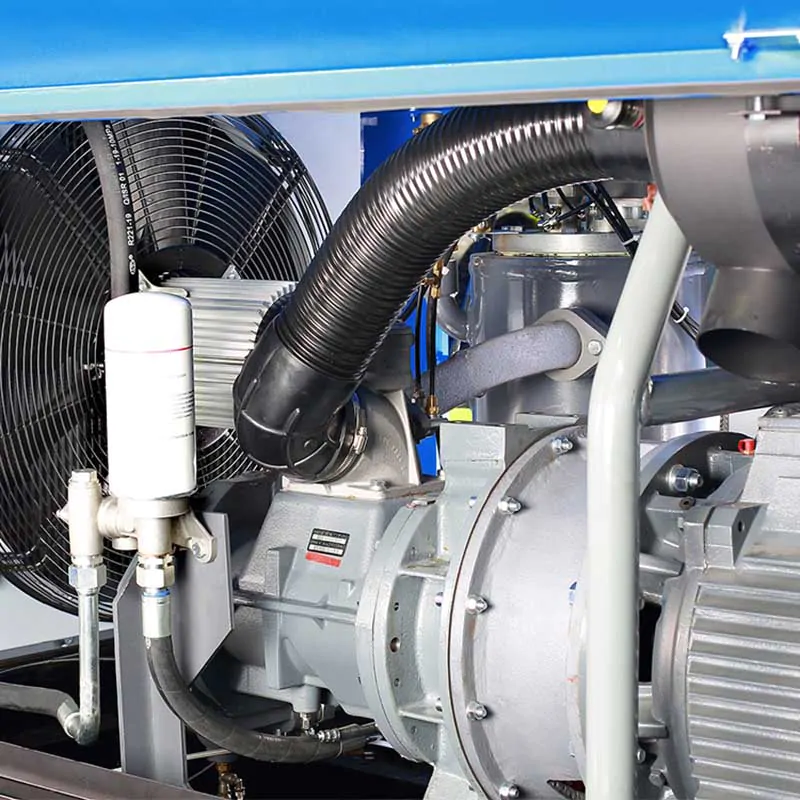

Installed with high quality Atlas Copco airend(screw element)
- The heart of the compressor-airend(screw element) is installed with Atlas Copco. With Atlas Copco high quality and high-performance airend, Liutech portable air compressor could keep your compressed air system running efficiently, effectively and operating at full capacity.
Strictly Follows European Industrial Design and Testing Standards
- Following Atlas Copco’s excellent design capability and abundant experience for air compressors, Liutech mobile screw air compressor keeping the best balance between performance and cost. The strict development process and testing standards which have been formed with reference to the Atlas Copco’s experience accumulated over decades, ensure reliable quality of every Liutech air compressor.
ISO International Standard Quality Management System
- Liutech air compressors are kept in strict conformity with the ISO9001, ISO14001 and OHSAS18001 standards from design, manufacturing to assembly, so as to ensure stable operation of the compressor, and thus the interests of the user in the long run.
- Benefiting from the Atlas Copco’s history and technical experience for over 140 years, and designed specifically for the variety of complex climates and poor working conditions in China, every Liutech portable air compressor provides the best quality assurance.
| Model | LUY100D-7 | LUY085-14 | LUY100-10 | LUY100-12 | LUY120-7 | LUY120-14 | LUY150-15 | LUY160-17 |
|---|---|---|---|---|---|---|---|---|
| Working pressure, bar (psi) | 7(100) | 14(185) | 10(100) | 12(175) | 7(100) | 14(205) | 15(220) | 17(250) |
| Flow, l/s｜cfm｜m3/min | 83｜177｜5 | 142｜300｜8.5 | 167｜353｜10 | 167｜353｜10 | 200｜424｜12 | 200｜424｜12 | 250｜530｜15 | 267｜565｜16 |
| Dual pressure* | – | – | – | – | – | – | – | – |
| Noise level (at 7m, dBA) | 70±3 | 81±3 | 81±3 | 81±3 | 81±3 | 83±3 | 83±3 | 83±3 |
| Fuel tank capacity, l | 67 | 120 | 120 | 120 | 120 | 180 | 250 | 250 |
| Outlet valve, Qty. x size | 3xG3/4 | 1xG3/4 1xG1 1/2 | 1xG3/4 1xG1 1/2 | 1xG3/4 1xG1 1/2 | 1xG3/4 1xG1 1/2 | 1xG3/4 1xG1 1/2 | 1xG3/4 1xG1 1/2 | 1xG3/4 1xG1 1/2 |
| Engine | ||||||||
| Engine maker | Kubota | Yuchai | Yuchai | Yuchai | Yuchai | Yuchai | Yuchai | Yuchai |
| Engine model | V1505 T | YC4A130-H311 | YC4A130-H311 | YC4A130-H311 | YC4A130-H311 | YC6J175-H301 | YC6J175-H301 | YC6J175-H301 |
| Engine power, Kw | 33 | 96 | 96 | 96 | 96 | 129 | 151 | 176 |
| Norminal speed, rpm | 2950 | 2300 | 2300 | 2300 | 2300 | 2300 | 2050 | 1950 |
| Unloading speed, rpm | 1950 | 1400 | 1400 | 1400 | 1400 | 1400 | 1200 | 1200 |
| Engine aspiration | Turbocharge | Turbocharge | Turbocharge | Turbocharge | Turbocharge | Turbocharge | Turbocharge | Turbocharge |
| Model | LUY200-10* | LUY220-8* | LUY180-19 | LUY310-25* | LUY390-25* | LUY390-30* | LUY340-34* |
|---|---|---|---|---|---|---|---|
| Working pressure, bar (psi) | 10/17(150/250) | 8/10(115/150) | 19(275) | 25/18(360/260) | 25/15(360/220) | 30/20(435/290) | 34/20(493/290) |
| Flow, l/s｜cfm｜m3/min | 333｜706｜20 | 367｜777｜22 | 300│635｜18 | 467｜988｜28 | 583｜1235｜35 | 583｜1235｜35 | 533｜1130｜32 |
| Dual pressure* | 267｜565｜16 | 333｜706｜20 | – | 517｜1094｜31 | 650｜1377｜39 | 650｜1377｜39 | 567｜1200｜34 |
| Noise level (at 7m, dBA) | 83±3 | 83±3 | 83±3 | 83±3 | 83±3 | 83±3 | 83±3 |
| Fuel tank capacity, l | 250 | 250 | 300 | 500 | 550 | 710 | 710 |
| Compressor oil, l | 55 | 55 | 55 | 75 | 105 | 105 | 105 |
| Outlet valve, Qty. x size | 1xG2 1xG3/4 | 1xG2 1xG3/4 | 1xG2 1xG3/4 | 1xG2 1xG3/4 | 1xG2 1xG3/4 | 1xG2 1xG3/4 | 1xG2 1xG3/4 |
| Engine | |||||||
| Engine maker | Yuchai | Yuchai | Yuchai | Yuchai | Yuchai | Yuchai | Yuchai |
| Engine model | YC6A240-H301 | YC6A240-H301 | YC6A260-H300 | YC6A260-H300 | YC6K510-KT30 | YC6K510-KT30 | YC6K510-KT30 |
| Engine power, Kw | 176 | 176 | 191 | 295 | 375 | 412 | 412 |
| Norminal speed, rpm | 2100/1800 | 2100/1800 | 1900 | 1750/1900 | 1500/1750 | 1500/1750 | 1600/1750 |
| Unloading speed, rpm | 1200 | 1200 | 1200 | 1200 | 1300 | 1300 | 1300 |
| Engine aspiration | Turbocharge | Turbocharge | Turbocharge | Turbocharge | Turbocharge | Turbocharge | Turbocharge |
