Ultra-efficient Type
Saving your money from heavy bills
First Class Efficiency
Atlas Copco Same Performance
Built on proven Atlas Copco group technology and supported by original Bolaite components.
Need a compressor match?
Share your air demand, pressure and site conditions. Our engineers will recommend the right model.
Under the increasingly energy-saving demands in each industry, Bolaite provided our customers with state-of-the-art S series compressors to address this issue. Fully met with the requirements of national first-class energy efficiency, which is about 20% more energy-efficient than second-class energy efficiency, 30% than third-level energy efficiency. It is the best choice for our customers to reduce their energy costs.
Features
Bolaite air compressor could bring you:
- Long-life consumables intervals
- Quite Enclosure to 66 dBA
- Atlas Copco’s airend(rotors)
- Atlas Copco touch screen color controller
- Main component from Atlas Copco for reliable performance
Need detailed specifications?
Max. working pressure
5-13 bar – 72-189 psig
Capacity FAD*
4.2-15.2 m3/min – 148-536 cfm
Installed motor power*
30-75 kw – 50-100 hp
On the Whole
First class energy efficiency Sound level as low as 66 dBA Suitable for most industry Ease of serviceability
Look Closer

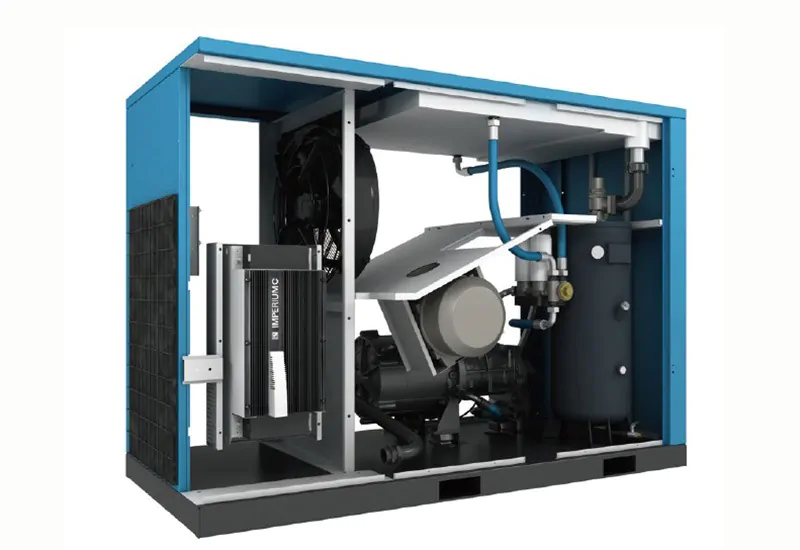

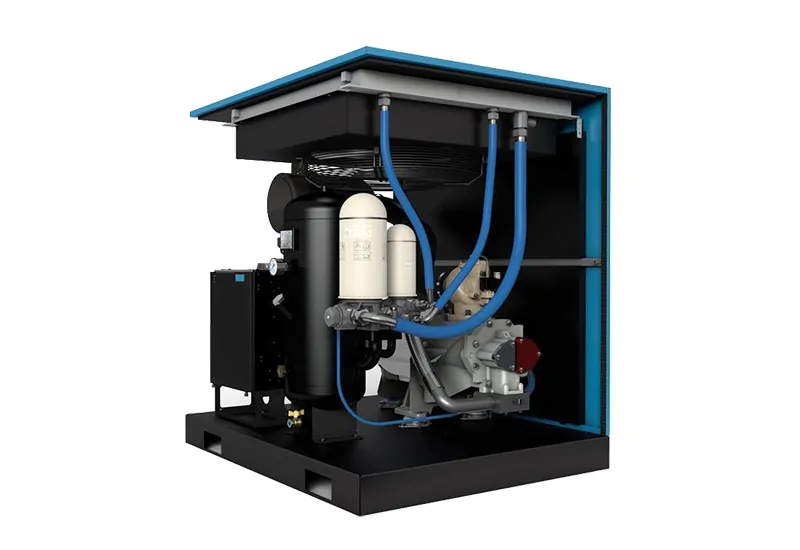

Vacuum inlet valve Rich cooling methods Installed Atlas Copco’s high-efficiency rotor Atlas Copco touch screen color display controller
Atlas Copco airend
Installed with Atlas Copco’s rotors SAP patented line saves more than 5% of energy SKF heavy-duty bearings ensure long life and reliable operation
High Quality Motor
IP54 protection fully enclosed motor Efficient design, SKF bearings ensure long life of the motor. Standard reverse rotation protection
Patented modular design
Patented and innovative modular design ensures no leakage and easier maintenance Extremely high operating efficiency and reliability
High efficient oil separator
Reduce oil content to less than 3ppm Effectively reduce pressure loss Provide you with clean compressed air
Electrical system
Standardized design, safe and reliable Schneider and Siemens high-grade components for safe use
Imported high pressue tubing
Imported famous tubing system High temperature risistance up to 135℃
Efficient Cooler
Large oil cooler design ensures the safety of the compressor through summer Designed for high ambient temperature
Intelligent control system
LCD display in English and Chinese Easy to adjust Optional large-screen touch panel
Outstanding Energy Efficiency; Consistent Performance
Installed with high quality Atlas Copco airend(screw element)
-
- The heart of the compressor-airend(screw element) is installed with Atlas Copco. With Atlas Copco high quality and high-performance airend, Bolaite air compressor could keep your compressed air system running efficiently, effectively and operating at full capacity.
Strictly Follows European Industrial Design and Testing Standards
- Following Atlas Copco’s excellent design capability and abundant experience for air compressors, Bolaite compressor keeping the best balance between performance and cost. The strict development process and testing standards which have been formed with reference to the Atlas Copco’s experience accumulated over decades, ensure reliable quality of every Bolaite air compressor.
ISO International Standard Quality Management System
- Bolaite air compressors are kept in strict conformity with the ISO9001, ISO14001 and OHSAS18001 standards from design, manufacturing to assembly, so as to ensure stable operation of the compressor, and thus the interests of the user in the long run.
- Benefiting from the Atlas Copco’s history and technical experience for over 140 years, and designed specifically for the variety of complex climates and poor working conditions in China, every BLT-series air compressor provides the best quality assurance.
| Model | Max. working pressure | Capacity FAD* | Motor power | Noise level** | Dimensions | Weight(kg) | Air outlet | Water inlet/outlet | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| bar(e) | psig | m3/min | cfm | kw | hp | dB(A) | L x W x H (mm) | ||||
| BLT-40AG s | 7 | 102 | 5.9 | 208 | 30 | 40 | 66±2 | 1720x980x1600 | 820 | G1 1/2″ | – |
| 8 | 116 | 5.5 | 194 | ||||||||
| 10 | 145 | 5.0 | 176 | ||||||||
| 13 | 189 | 4.2 | 148 | ||||||||
| BLT-50AG S | 7 | 102 | 7.2 | 254 | 37 | 50 | 67±2 | 1720x980x1600 | 850 | G1 1/2″ | – |
| 8 | 116 | 6.7 | 236 | ||||||||
| 10 | 145 | 6.1 | 215 | ||||||||
| 13 | 189 | 5.1 | 180 | ||||||||
| BLT-60AG S | 7 | 102 | 8.4 | 296 | 45 | 60 | 67±2 | 1720x980x1600 | 910 | G1 1/2″ | – |
| 8 | 116 | 8.4 | 296 | ||||||||
| 10 | 145 | 7.8 | 275 | ||||||||
| 13 | 189 | 6.2 | 218 | ||||||||
| BLT-75AG/WG S | 5 | 72 | 12.5 | 441 | 55 | 75 | 70±2 | 2260x1060x1600 AG 1819x1060x1596 WG | 1460/1480 | G2″ AG | G1″ |
| 7 | 102 | 11.1 | 391 | ||||||||
| 8 | 116 | 10.4 | 367 | ||||||||
| 10 | 145 | 9.2 | 324 | G1 1/2″ WG | |||||||
| 13 | 189 | 7.9 | 278 | ||||||||
| BLT-100AG/WG S | 5 | 72 | 15.2 | 536 | 75 | 100 | 71±2 | 2260x1060x1600 AG 1819x1060x1596 WG | 1535/1550 | G2″ AG” | G1″ |
| 7 | 102 | 14.9 | 526 | ||||||||
| 8 | 116 | 14.1 | 497 | ||||||||
| 10 | 145 | 12.6 | 444 | G1 1/2″ WG | |||||||
| 13 | 189 | 10.6 | 374 | ||||||||
Note:
1. A-air cooling, W-water cooling; the inlet pressure of the water cooling models is 0.2~0.6MPa; for the same type of compressors,the weight of water cooling models is a little lighter than that of air cooling models.
2. For compressor units with motor power of over 200kW, 3 kV, 6 kV and 10 kV high-voltage power supply are optional. For other power supply requirements, please consult us.
Unit performance measured according to ISO 1217, Annex C, Edition 4:2009.
Values determined according to noise level test code ISO 2151 and noise measurement standard ISO 9614.
