PM VSD
PM motor + Atlas Copco airend
Atlas Copco Parts
Built on proven Atlas Copco group technology and supported by original Bolaite components.
Robust performance
Need a compressor match?
Share your air demand, pressure and site conditions. Our engineers will recommend the right model.
Need the same quality products as Atlas Copco? Need VSD screw air compressor for your production? Afraid of the demagnetization of PM motor? All your needs and concerns are solved by Bolaite air compressor. Bolaite uses Atlas Copco new technology in the PM motors to provide you the highest energy efficiency and stable screw air compressors. Check out what Bolaite could provide to you.
Features
Bolaite S PM screw air compressor could bring you:
- High energy efficient
- Reliable core components
- Premium synthetic fluid
- Standard quiet enclosure
- Designed for 24/7 duty cycle
- Wide range of working pressure and capacity

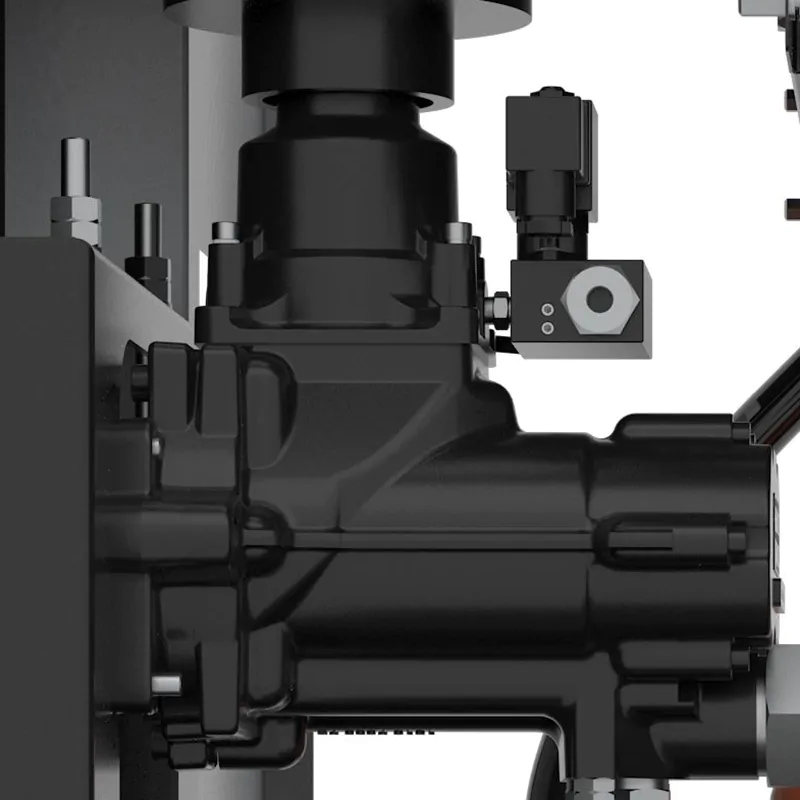

Atlas Copco airend
With 150 years of development, Atlas Copco airends are time-proven the best quality and high energy efficient product in the compressed air industry. Choose best quality airend product to help with your production.
Which air compressor best suits you?
Max. working pressure
8-10 bar
Capacity FAD*
0.25-13 m3/min
Installed motor power*
7.5-75 kw
On the Whole
Low oil carryover Easy maintenance Robust design Standard quiet enclosure Designed for 24/7 duty cycle Wide range of working pressure and capacity

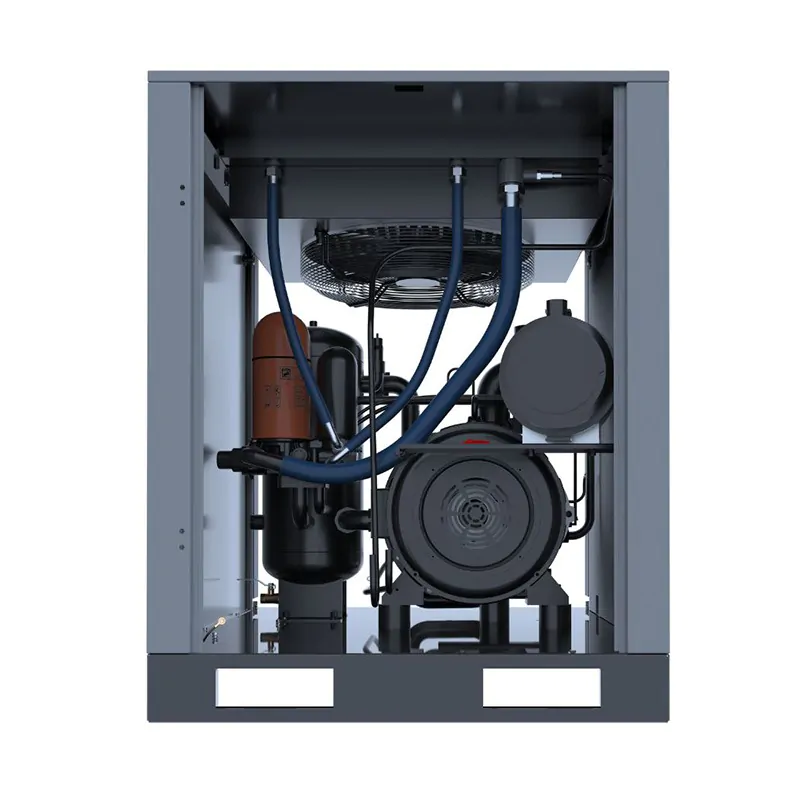

Look Closer
VSD drive Oil cooled PM motor High efficiency intake filter SKF bearing Atlas Copco control system SAP patented line for high efficiency
Outstanding Energy Efficiency; Consistent Performance

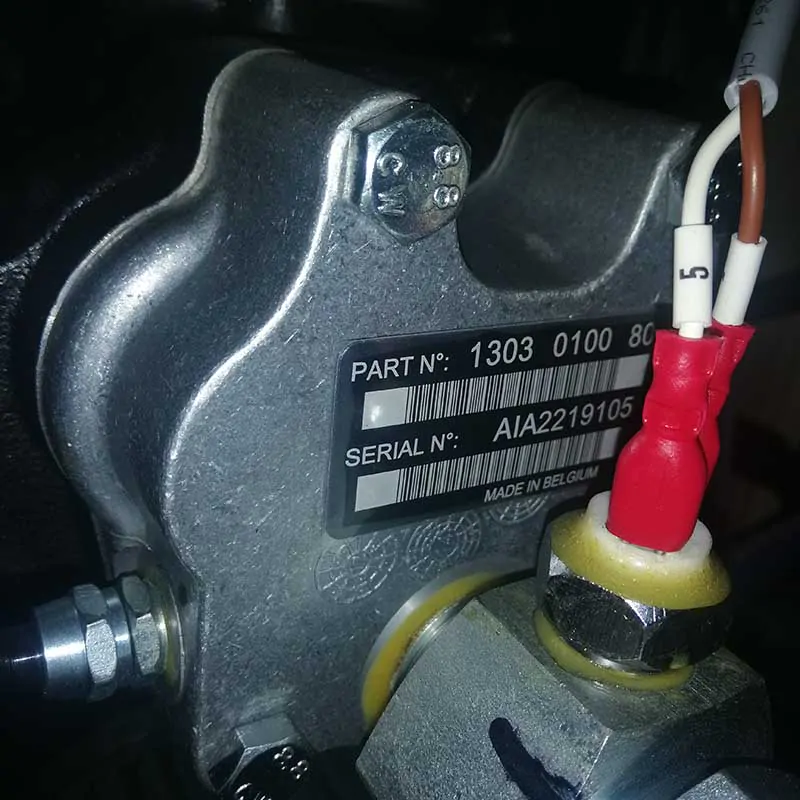

Installed with high quality Atlas Copco airend(screw element)
-
- The heart of the compressor-airend(screw element) is installed with Atlas Copco. With Atlas Copco high quality and high-performance airend, Bolaite air compressor could keep your compressed air system running efficiently, effectively and operating at full capacity.
Strictly Follows European Industrial Design and Testing Standards
- Following Atlas Copco’s excellent design capability and abundant experience for air compressors, Bolaite compressor keeping the best balance between performance and cost. The strict development process and testing standards which have been formed with reference to the Atlas Copco’s experience accumulated over decades, ensure reliable quality of every Bolaite air compressor.
ISO International Standard Quality Management System
- Bolaite air compressors are kept in strict conformity with the ISO9001, ISO14001 and OHSAS18001 standards from design, manufacturing to assembly, so as to ensure stable operation of the compressor, and thus the interests of the user in the long run.
- Benefiting from the Atlas Copco’s history and technical experience for over 140 years, and designed specifically for the variety of complex climates and poor working conditions in China, every BLT-series air compressor provides the best quality assurance.
| Model | Max. pressure | Capacity FAD | Motor power | Weight | Air outlet | Dimensions (mm) |
| bar(e) | m3/min | kW | kg | LxWxH | ||
| TH-7.5 PM | 8 | 0.25-0.95 | 7.5 | 158 | G 3/4“ | 800x650x930 |
| TH-11 PM | 8 | 0.45-1.6 | 11 | 297 | G 3/4“ | 850x700x990 |
| TH-15 PM | 8 | 0.6-2.0 | 15 | 300 | G 3/4“ | 850x700x990 |
| TH-22 PM | 8 | 1.05-3.6 | 22 | 340 | G 1“ | 1000x860x1080 |
| 10 | 1.05-3.0 | 22 | 340 | G 1“ | 1000x860x1080 | |
| TH-30 PM | 8 | 1.4-5.1 | 30 | 518 | G 1 1/2“ | 1150x1020x1260 |
| 10 | 1.4-4.4 | 30 | 518 | G 1 1/2“ | 1150x1020x1260 | |

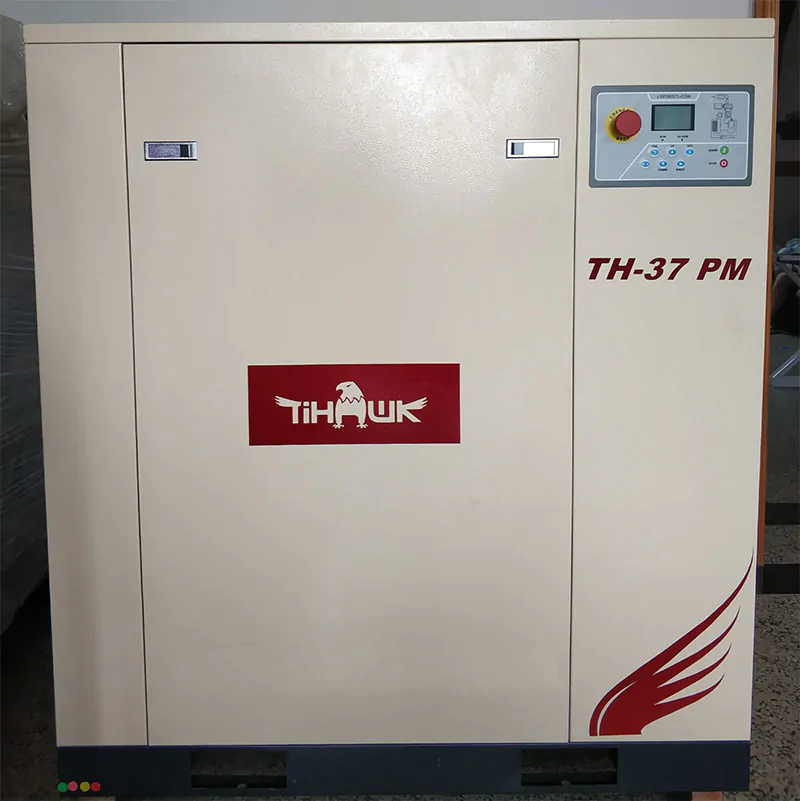

| TH-37 PM | 8 | 1.7-6.4 | 37 | 550 | G 1 1/2“ | 1150x1020x1260 |
| 10 | 1.7-5.5 | 37 | 550 | G 1 1/2“ | 1150x1020x1260 | |

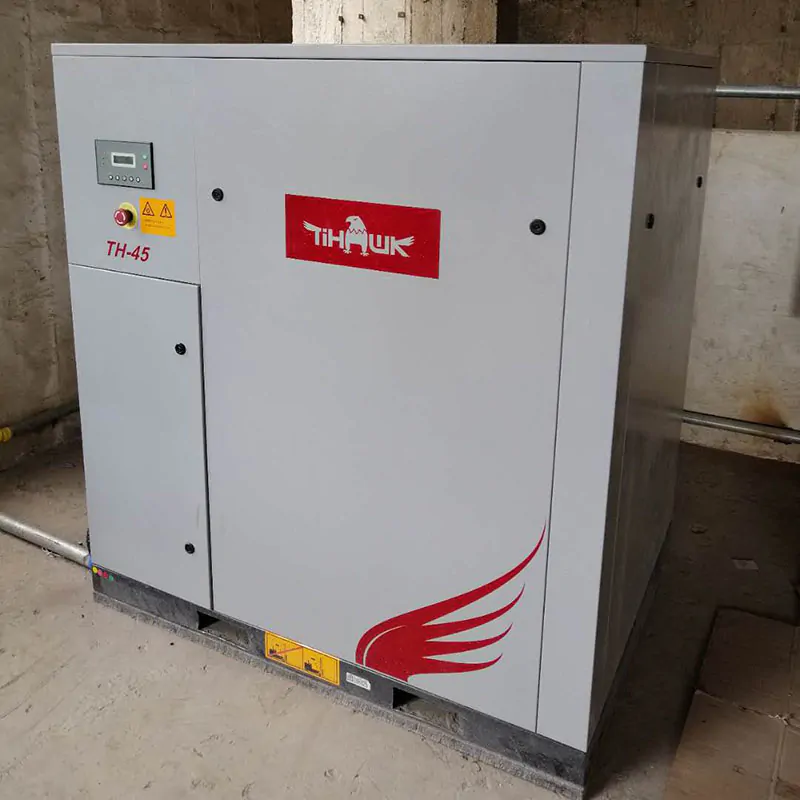

| TH-45 PM | 8 | 2.1-7.3 | 45 | 615 | G 1 1/2“ | 1150x1020x1260 |
| 10 | 2.1-6.5 | 45 | 615 | G 1 1/2“ | 1150x1020x1260 | |
| TH-55 PM | 8 | 2.7-10.0 | 55 | 1100 | G 2“ | 1600x1200x1460 |
| 10 | 2.7-8.4 | 55 | 1100 | G 2“ | 1600x1200x1460 | |
| TH-75 PM | 8 | 3.6-13.0 | 75 | 1350 | G 2“ | 1700x1430x1460 |
| 10 | 3.6-11.5 | 75 | 1350 | G 2“ | 1700x1430x1460 |
Unit performance measured according to ISO 1217, Annex C, Edition 4:2009.
Values determined according to noise level test code ISO 2151 and noise measurement standard ISO 9614.
